Tri Axle Side Wall Trailer

Tri Axle Side Wall Trailer

11300 USD

We adopts high strength steel material to manufacture the side wall trailer for sale, it can make the tri axle side wall trailer have a higher loading capacity and a longer service life.

SKU: Tri Axle Side Wall Trailer
MPN: FOTON66307
Brand: Cargo Transport Trailer

Side Wall Trailer Description:

Side wall trailer was popular by logistics companies as its multipurpose application. It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

We adopts high strength steel material to manufacture the side wall trailer for sale, it can make the tri axle side wall trailer have a higher loading capacity and a longer service life. And trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

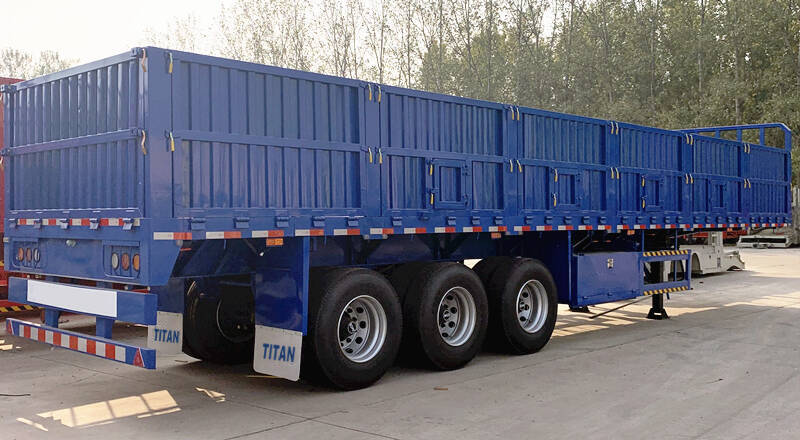

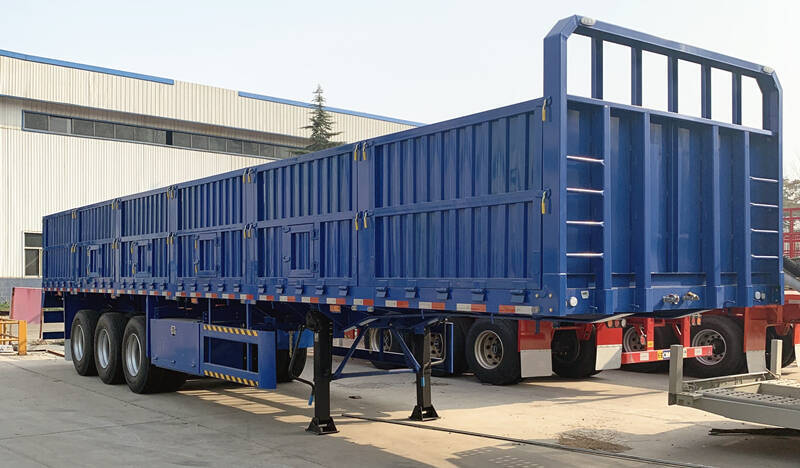

Tri Axle 60T Side Wall Trailer for Sale in Nigeria

Tri Axle 60T Side Wall Trailer for Sale in Nigeria

Tri Axle 60T Side Wall Trailer for Sale in Nigeria

Tri Axle 60T Side Wall Trailer for Sale in Nigeria

Tri Axle 60T Side Wall Trailer for Sale in Nigeria



Specification of tri axle side wall trailer:

Tare Weight: About 7.6T

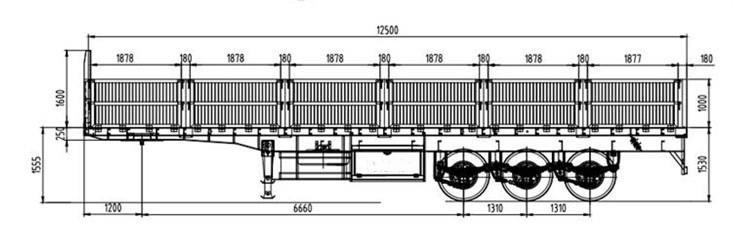

Dimension(mm): 12500x2500x3155mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Trailer Sides: 1000mm, or box type sides

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tri Axle 60T Side Wall Trailer for Sale in Nigeria
