The animal transport trailer with detachable long stakes use to load a wide range of bulk cargo, like sand, bags, poultry etc. 4 axle livestock trailer for sale is very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty bulk cargo. The livestock trailer stakes can be added with a container turn lock to transport the container.
4 axle livestock trailer with fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.

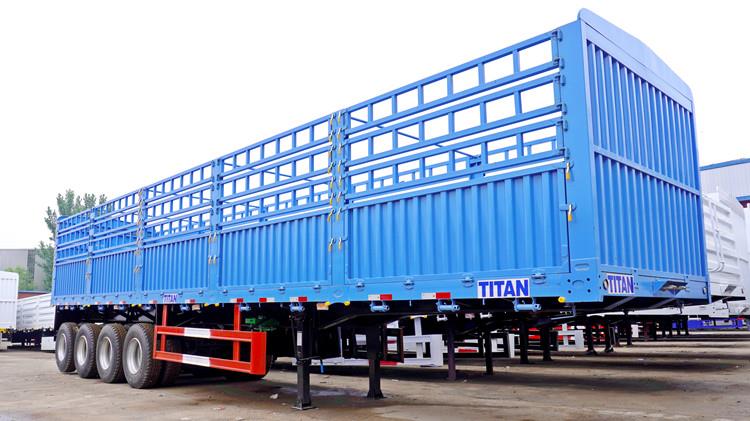

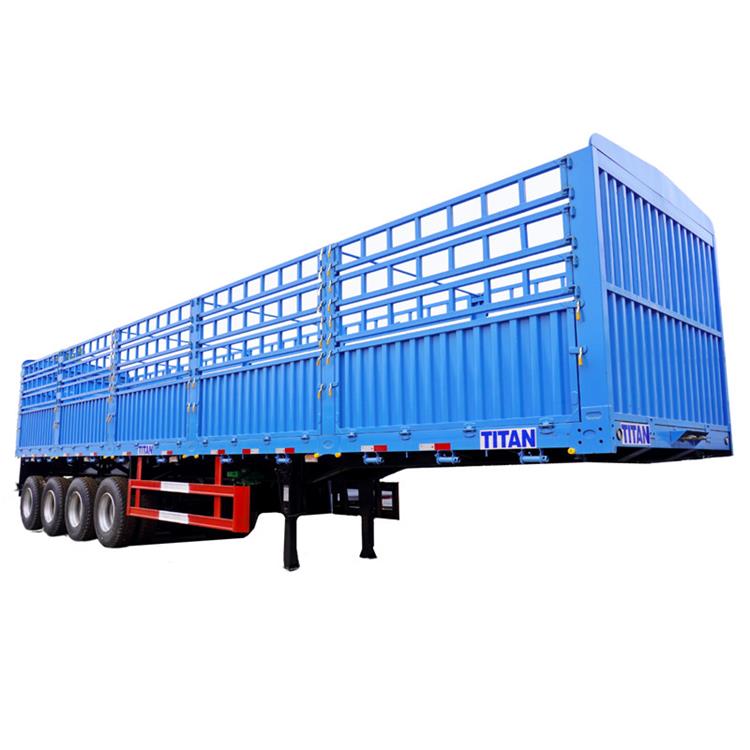

4 Axle Animal Transport Livestock Trailer Stakes for Sale
Dimension(mm): 13000x2600x3420mm
Trailer Sides: 1800mm
Loading capacity(ton): ≤80T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

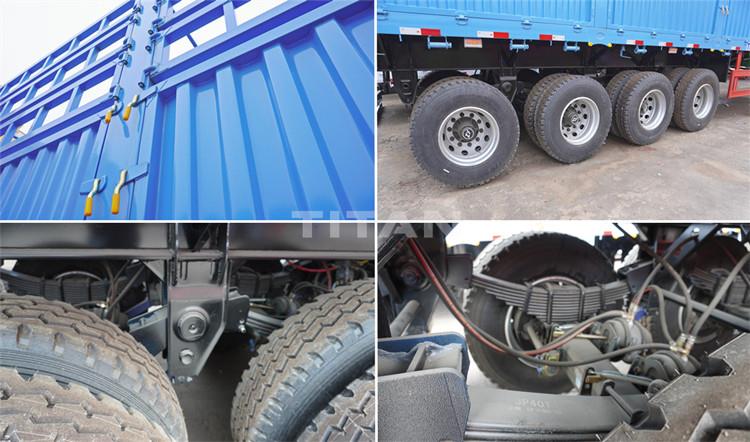

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. We adopts high strength steel material to manufacture the side wall semi trailer, it can make the animal transport trailer for sale have a higher loading capacity and a longer service life.
2. We uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.
4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
5. Hight quality side wall, make sure the stable and safety of the loads.
