Foton Heavy Truck Supplier
40 Ton Drop Side Trailer

40 Ton Drop Side Trailer

11000 USD

We adopts high strength steel material to manufacture the 40 ton drop side trailer for sale, it can make the trailer have a higher loading capacity and a longer service life.

SKU: 40 Ton Drop Side Trailer
MPN: FOTON66309
Brand: Cargo Transport Trailer

40 Ton Drop Side Trailer Description:

Drop side trailer for Sale was popular by logistics companies as its multipurpose application. It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

The tri axle dropside trailer for Sale can be use to load the containers after adopt the contianer locks for it.

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale



Specification of drop side trailer:

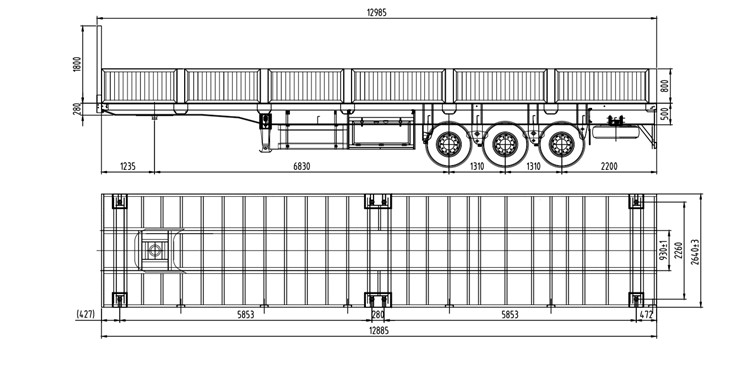

Dimension(mm): 12985mm*2640mm*3350mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤40T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

40 Ton Drop Side Trailer | Tri Axle Dropside Trailer for Sale

Advantage of dropside trailer:

1. We adopts high strength steel material to manufacture the tri axle dropside trailer for sale, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the drop side trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight quality side wall, make sure the stable and safety of the loads.



Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!

Feedback

Review

Ancordi from Ghana - 2022-08-17T10:08:12+0800
I just received the 40 ton drop side trailer. It looks perfect. They have a complete customer service process. I am very satisfied with this.
