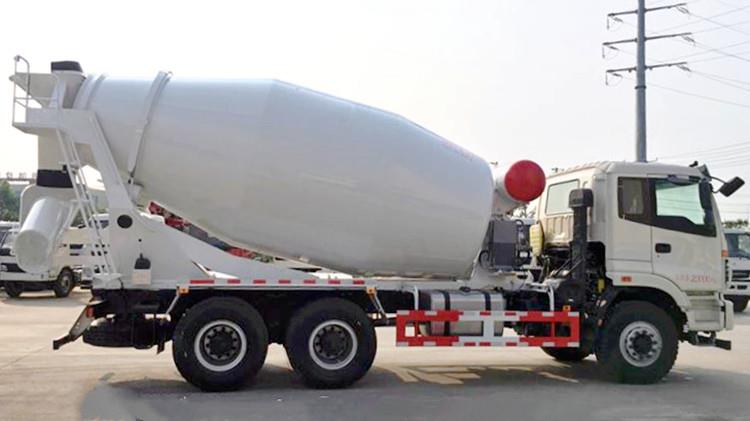

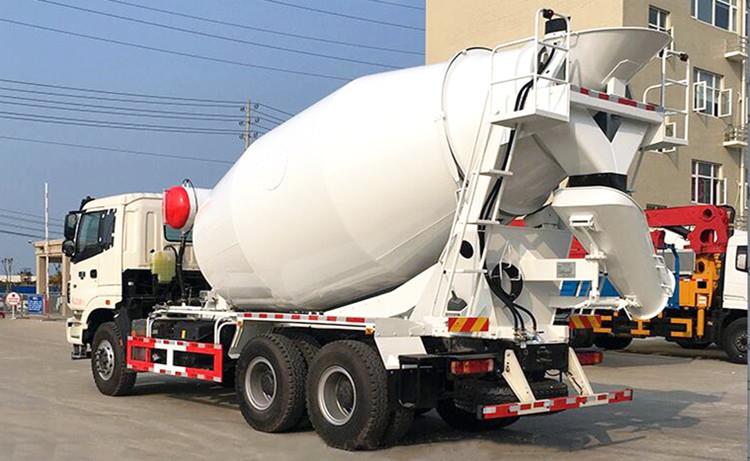

Foton mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
Foton 12cbm concrete mixer truck adopts Foton ETX flat top with lying Cab, wheelbase 4100+1350mm, 9 speeds gearbox, vehicle size:9800×2500×3980mm, equipped with Weichai 336 horsepower Eruo 5 diesel engine.
Foton etx 6x4 concrete transit mixer truck can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Our 12cbm concrete mixer truck consists of seven main parts. Theyare hydraulic pump, reducer, rotating drum mixer, operation system, drum cleaning system,concrete feed hopper,concrete outlet hopper.
Foton Concrete 12cbm Mixer Truck | Foton ETX 6x4 Transit Mixer for Sale
Foton Concrete 12cbm Mixer Truck | Foton ETX 6x4 Transit Mixer for Sale
Basic parameters
Vehicle name: Foton 12cbm concrete mixer truck
engine: 336 horsepower of Weichai
Cab: Foton Auman ETX flat top with lying
Gearbox: 9th gear
Rear axle: 16-ton Mercedes rear axle
Dimensions: 9800×2500×3980(mm)
Actual volume: 12 parties
Total quality: 25000kg
Curb quality: 14500kg
Maximum speed: 85km/h
Displacement: 9726ml
Wheelbase: 4100+1350 (mm)
Tire specifications: 12.00R-20 original steel wire tire
Drive method: 6×4
Braking method: Steam brake (with ABS)
Fuel type: Diesel
Emission Standards: Eruo 5
Upload parameters
Head: 8mm thick high-strength manganese steel (Q345) material is more wear-resistant
Tank body: 6mm thick 16 fierce high alloy steel
Blade: 5mm thick (520JJ) alloy steel material (adding wear-resistant strips to increase service life)
Reducer: Italy Bonfiglioli (optionally equipped with German ZF, Italian PMP, and Fast reducer)
Hydraulic system: German Rexroth (optional PMP oil pump motors of American Eaton, Danvers, Sao, Italy)
Cooling system: Xinxiang Zhenhua (Changzhou Kaipeng and Xugong radiators are optional)
Water supply system: 400L water tank pressure water supply
Operation method: Trilateral operation on the left and right sides and the cab
Feeding speed: 3m3/min
Discharging speed: 2m3/min
Discharge residual rate: Discharge residual rate≤0.5
Discharge range: 180° height adjustment
