Foton Heavy Truck Supplier
Tri Axle Stake Semi Trailer

Tri Axle Stake Semi Trailer

12600 USD

At present, the most common bulk cargo trailer in daily life is the tri axle stake semi trailer. Because of the good air permeability of the stake semi trailer.

SKU: Tri Axle Stake Semi Trailer
MPN: FOTON66312
Brand: Cargo Transport Trailer

Stake Trailer Description:

At present, the most common bulk cargo stake semi trailer in daily life is the tri axle stake semi trailer. Because of the good air permeability of the stake semi trailer, if it is a sealed environment, in the summer, the cargo is easily damaged.

The stake trailer is a cheap and light construction, it is designed and built in such a way that it is easy to clean, which is a very important aspect to consider during your purchase.  This type of fences trailer is our most commonly sold model and exported, etc.

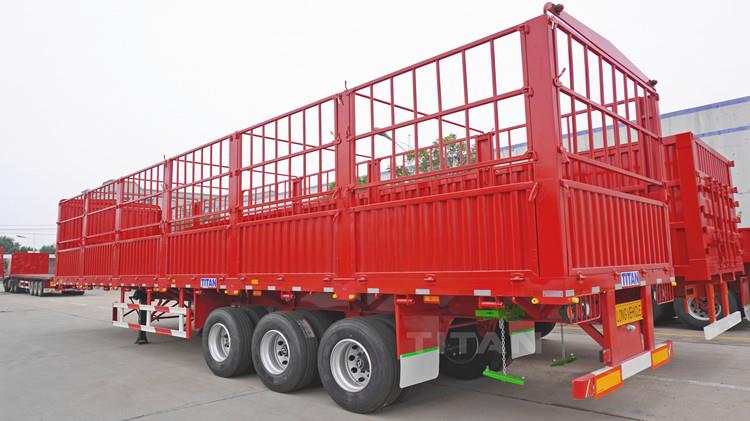

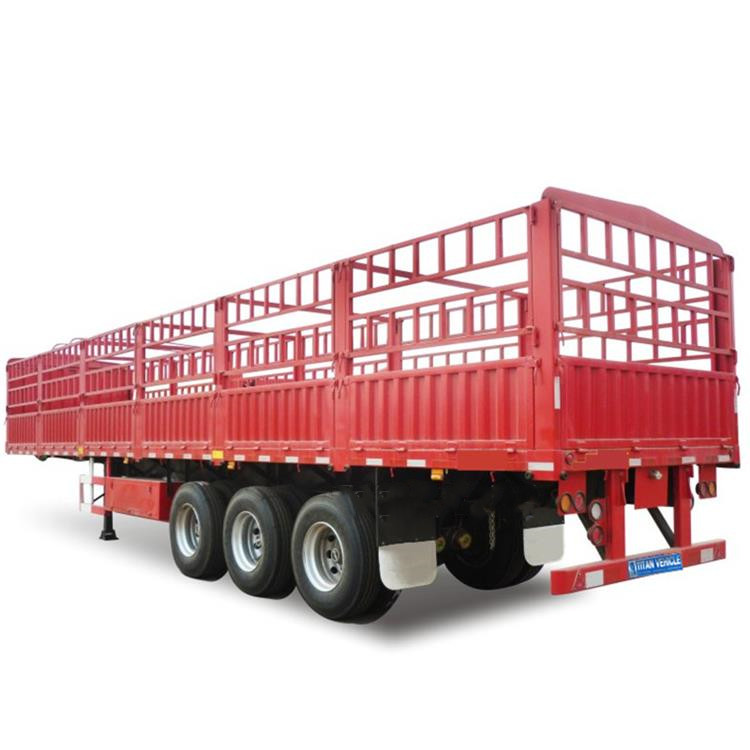

Tri Axle 60 Ton Stake Semi Trailer for Cargo Transport

Tri Axle 60 Ton Stake Semi Trailer for Cargo Transport

Tri Axle 60 Ton Stake Semi Trailer for Cargo Transport

Tri Axle 60 Ton Stake Semi Trailer for Cargo Transport

Tri Axle 60 Ton Stake Semi Trailer for Cargo Transport



Specification for Stake Semi Trailer:

Tare Weight: About 8.3T

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantages of Stake Trailer for Sale:

1. The stake semi trailer frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.

2. Reduce tire wear and fuel consumption. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.

3. Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the fences trailer for sale during operation.

4. Stake semi trailer for sale adopts a new type of suspension system with high strength and strong impact resistance. The load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground and effectively reduce tire wear during frequent bumps.
