Super Low Platform Excavator Trailer

Excavator Trailer Description:

850mm super low platform trailer is widely used in heavy machine transportation. The lowbed trailer has all the same versatility as a flatbed trailer but has a lowered deck to accommodate for a taller cargo height. This gives it an extra boost in the height that it can securely transport.

3 axle excavator trailer for sale can have one step, where the deck drops and stays flat until the end of the trailer, or a double drop, where the deck drops below the axle height and steps back up over the axles at the end of the excavator lowbed trailer.

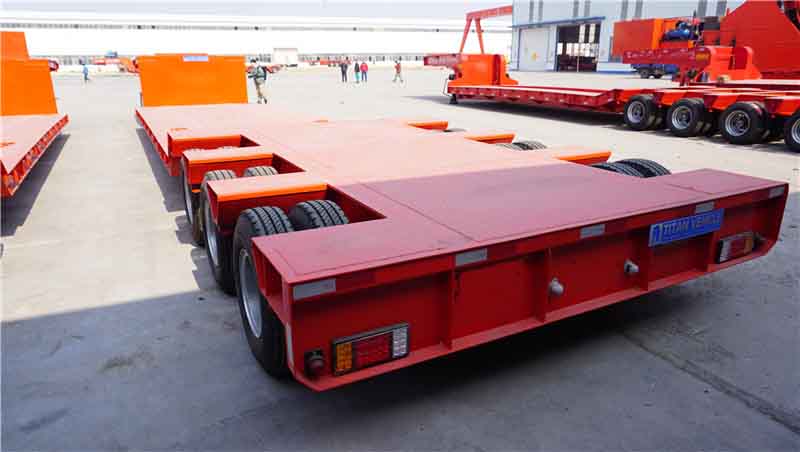

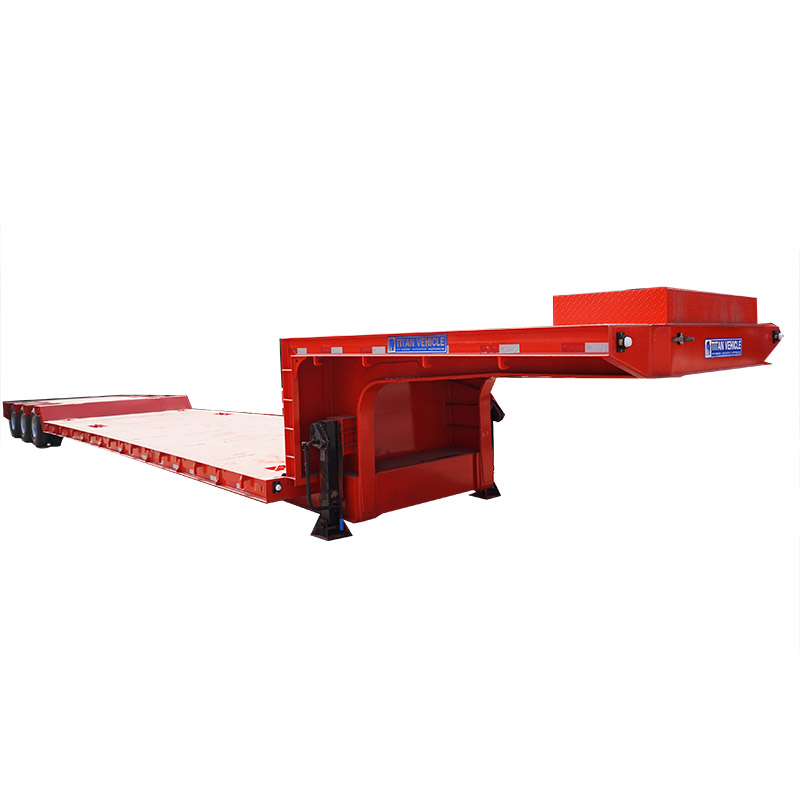

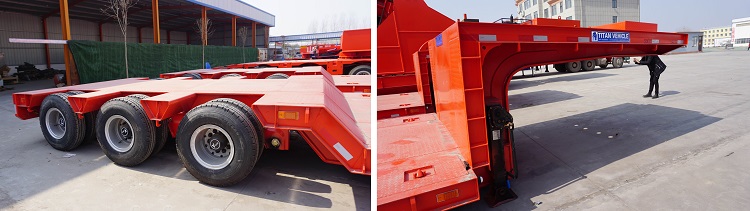

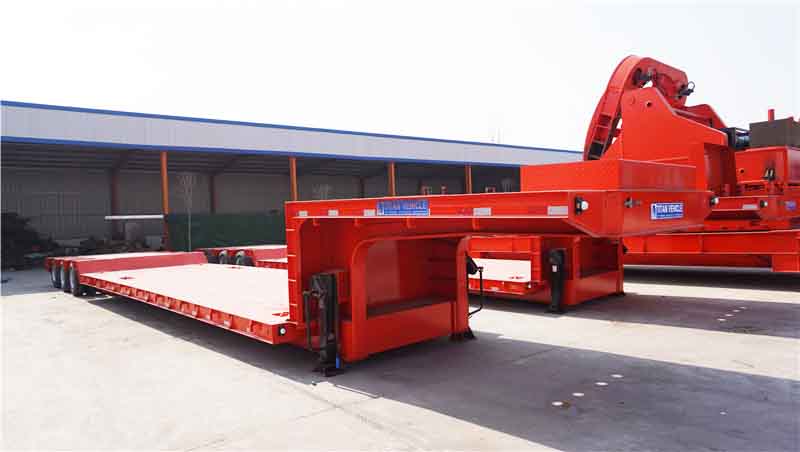

Super Low Platform Excavator Lowbed Trailer for Sale

Super Low Platform Excavator Lowbed Trailer for Sale

Specification of lowbed trailer:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 3 axles, 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
