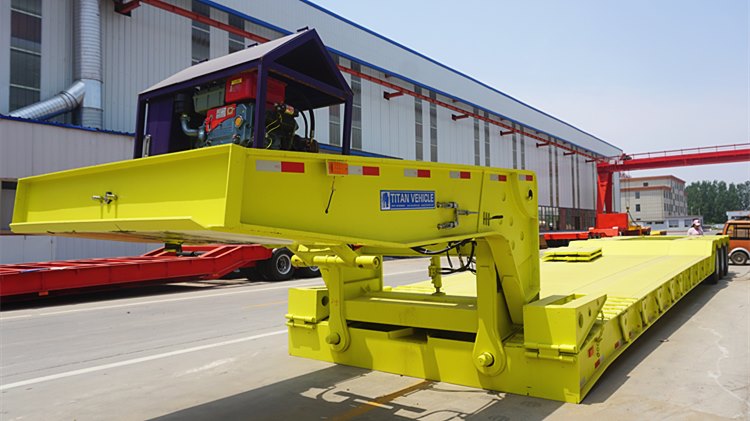

The 120 ton removable gooseneck trailer for sale is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the removable gooseneck trailer.
The 120 ton removable gooseneck trailer for sale is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the removable gooseneck trailer.
Removable gooseneck semi trailers are often utilized for transporting heavy machinery, such as bulldozers, excavators, backhoe loaders, and other types of heavy equipment. Items that do not fit onto a flatbed trailer or a lowbed trailer can typically be hauled via a removable gooseneck.

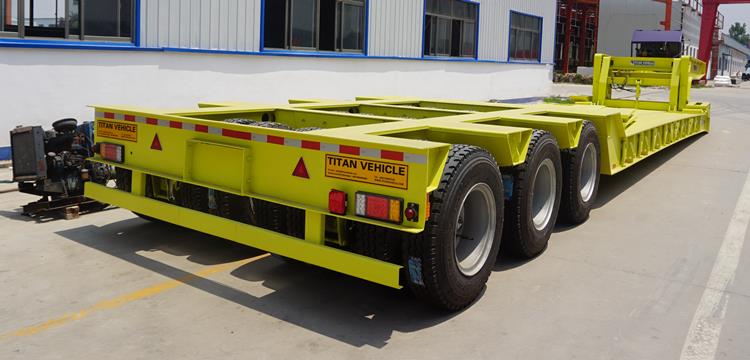

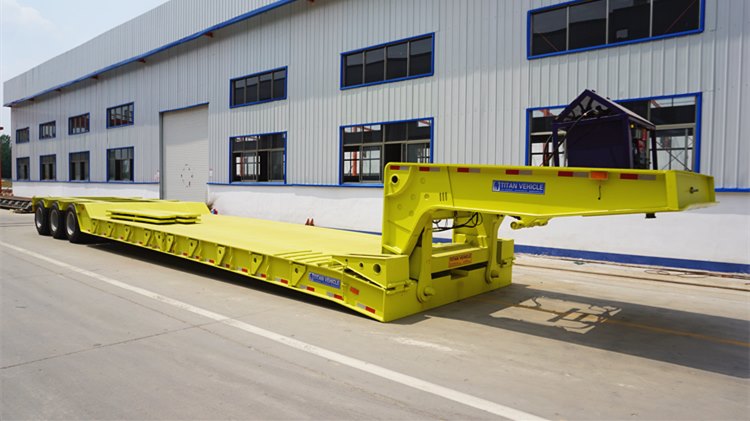

3 Line 6 Axle 120 Ton Removable Gooseneck Trailer for Sale
3 Line 6 Axle 120 Ton Removable Gooseneck Trailer for Sale
Dimension: 16250mm x 3400mm x 2500mm
Loading capacity(T): 120T
Axle: 3 lines 6 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container
