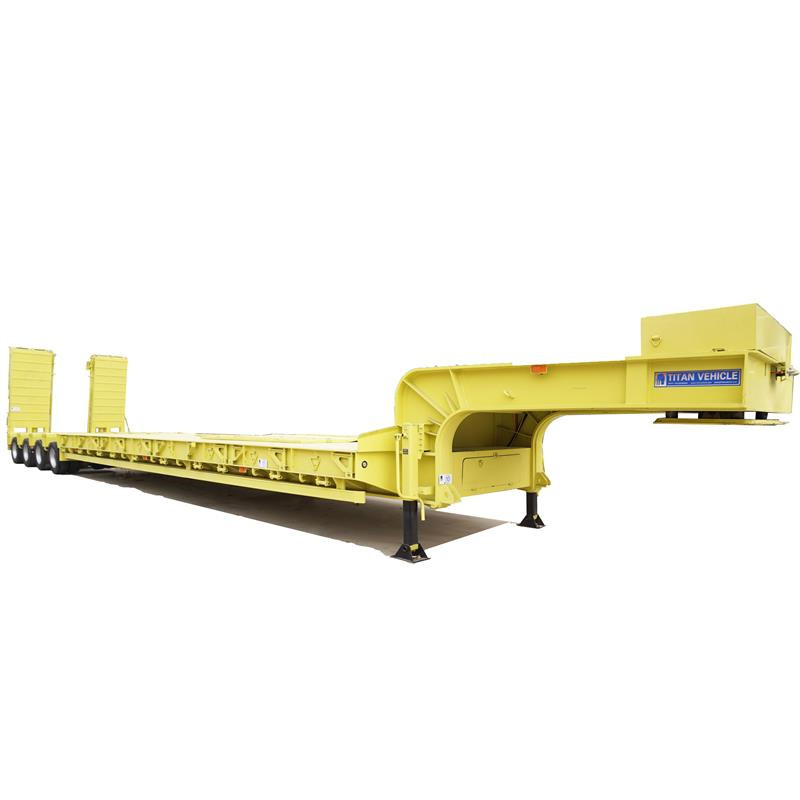

150 Ton Heavy Load Lowbed Truck

Lowbed truck trailer description:

150 Ton lowbed truck for sale adopts 500mm main beam, effectively increase 10% loading capacity than the normal low bed trailer for sale which uses 450mm main beam, and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on a bad road.

We can also make different types of lowbed trailer for sale, such as 60 ton lowbed truck trailer, 80 ton lowbed semi trailer, etc.

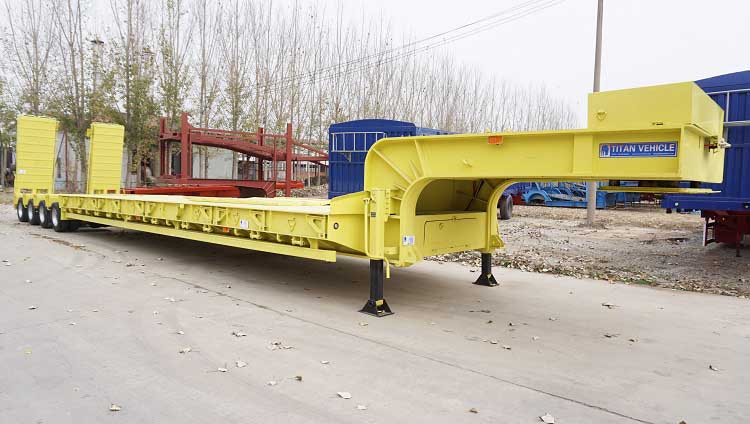

150 Ton Heavy Load Lowbed Truck Trailer for Sale

150 Ton Heavy Load Lowbed Truck Trailer for Sale

Specification of heavy load trailer：

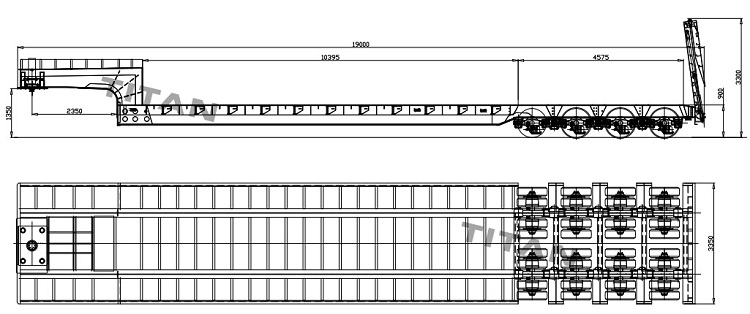

Overall dimension: 19000mm * 3300mm *3400mm

Loading capacity(T): 120-150 Tons

Axle: 4 lines 8 axles

Tire: 32 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

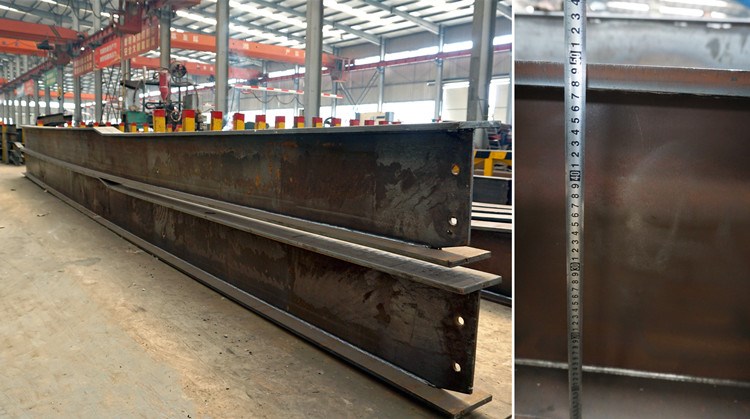

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage of 150 ton trailer:

1. Main beam of lowbed truck for sale adopts HG high strength steel, with high loading capacity.

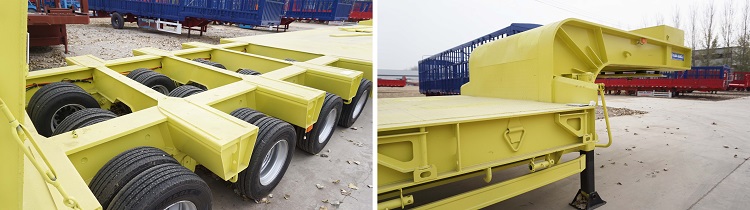

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

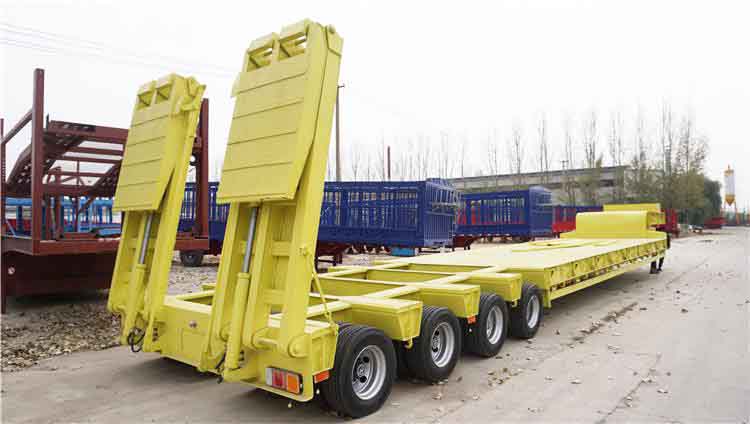

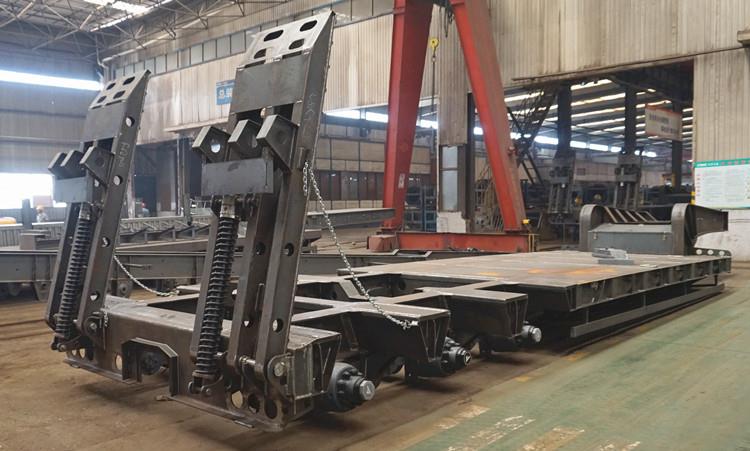

3. The loading ramps of 150 ton trailer is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. Polyurethane paint, with long service lift, and avoid the heavy load trailer get rust.

5. World famous brand spare part, ensure high quality and save costs.

Heavy Load Lowbed Truck for Sale in Factory
