Tri axle low bed trailer can carry 60-80 tons goods. Which has heavy duty mechanical spring suspension, with high loading capacity. Its main cargo platform is low, which ensures the stability of transportation.
Tri axle low bed trailer can carry 60-80 tons goods. Which has heavy duty mechanical spring suspension, with high loading capacity. Its main cargo platform is low, which ensures the stability of transportation.
Low bed trailer for sale can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our tri axle low bed trailer for sale is with a long service life and to avoid unnecessary maintenance.
Low Bed Trailer Price | Tri Axle Low Bed Trailer for Sale
Low Bed Trailer Price | Tri Axle Low Bed Trailer for Sale

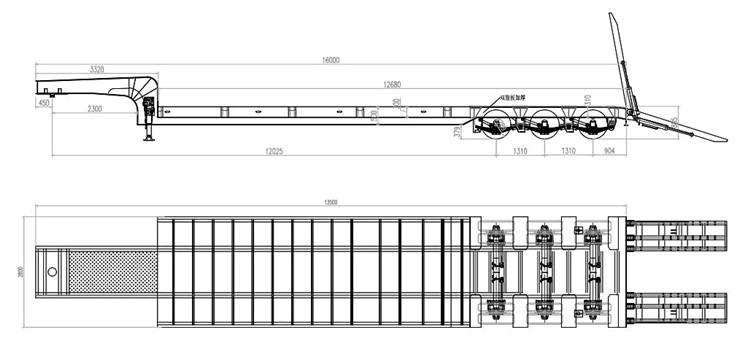

Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 60-80 Tons
Axle: 3 axles
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

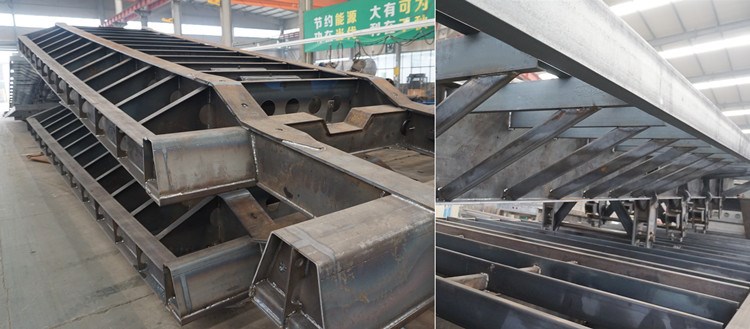

1. Main beam adopts HG60 high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

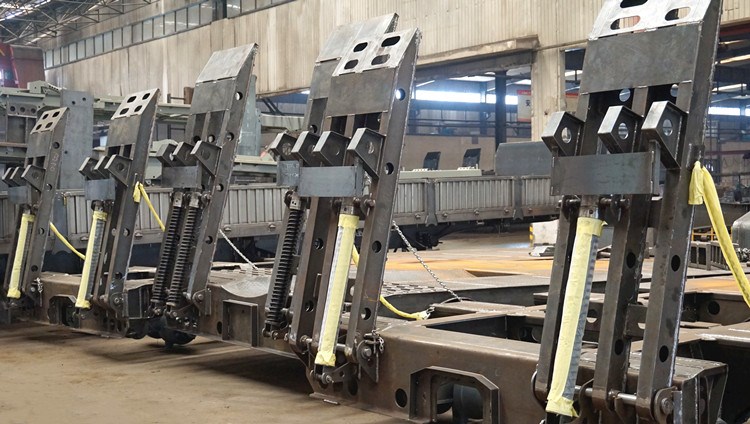

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. Polyurethane paint, with long service life, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
Tri Axle Low Bed Trailer for Sale in Factory
