4 Axle Low Loader for Sale

4 axle low loader for sale:

4 axle low loader trailer for sale use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

A low loader trailer has a platform and ramp, the cargo plate is a flatbed. The entire cargo platform is straight and above the wheels. The 4 axle low loader for sale is used to transport normal heavy cargo.

Low Loader for Sale | 4 Axle Low Loader Trailer with 100 Ton Capacity

Low Loader for Sale | 4 Axle Low Loader Trailer with 100 Ton Capacity

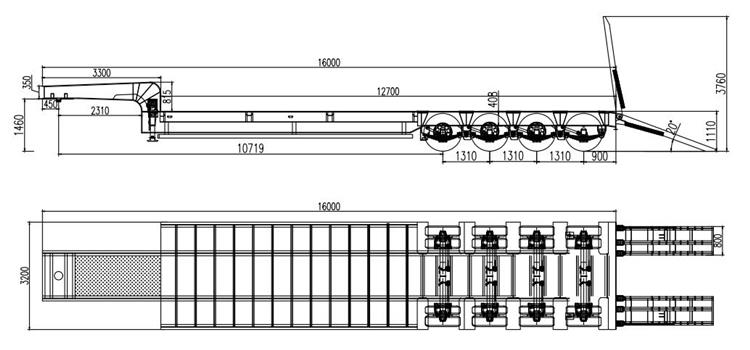

Specification of low loader for sale：

Overall dimension: 16000mm * 3200mm *3400mm

Loading capacity(T): 100T

Axle: 4 axles, 13T/16T, FUWA / BPW Brand

Tire: 16 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantages of 4 axle low loader:

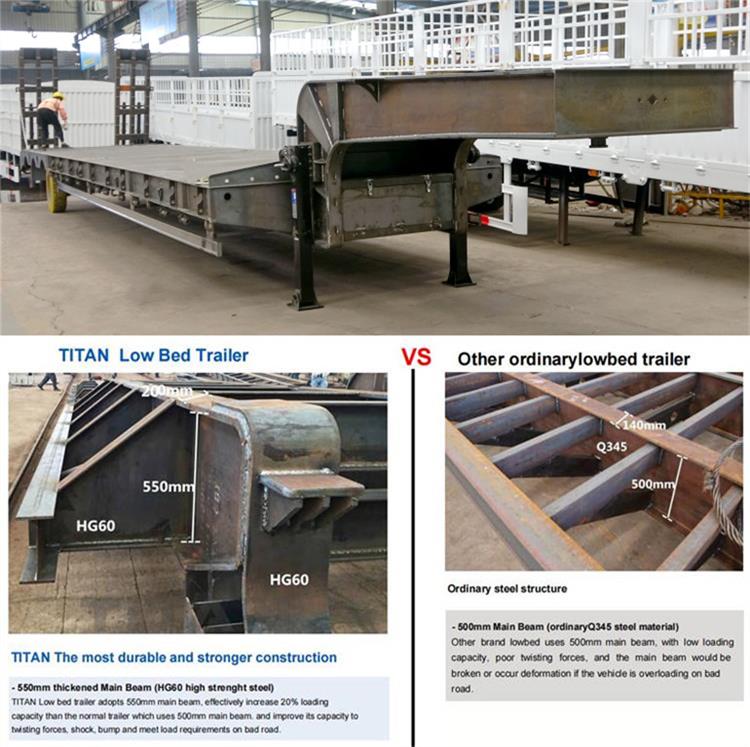

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. Polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.
